Vacuum - Adapter for IFR  4200

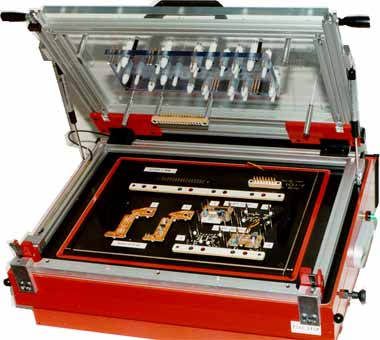

Vacuum Adapter VC FG IFR 4200 /4210
This vacuum – cartridge can be swivelled in its contacted condition. It is provided with a gas-assisted shock absorber and mounted on a flat case. Flat, gold-plated contacts are provided on an interface board.

The wiring has been established in ww-technique.
Outer dimensions    501 x 489
Usable area            460 x 400

Adapter variants:

Double-lift - Adapters for FKT and ICT - Test
VC FG IFR 4200 DH

DUO – Adapters for two-sided contacting
VC FG IFR 4200 DUO

Vacuum cartridge exchange system
VAM 30 mit Tausch - Cassette VAN und VAV

Pneumatic cartridge exchange system
Redline with exchange cartridge TC 30 – and exchange plate TP 30 -410

Vacuum - Adapter for IFR Test system Midata 51x

Vacuum adapter VC 30 IFR 51X
Swivel-type vacuum cartridge with gas-assisted shock absorber, mounted on a sloped case. The interface consists of a VG female multipoint connector (max. 22 ea. 96-pole/64-pole), which is connected with the tester by means of wear parts. The interface is freely movable in a z-direction for easier docking to the tester.
The wiring is in ww technique.

Outer dimensions    390 x 530
Usable area            320 x 450



Vacuumadapter VC 25 IFR 51X
Outer dimensions    380 x 485
Usable area            250 x 380

Adapter variants:

Double-lift - Adapter for FKT and ICT - Testing
VC 30  IFR 80R DH

DUO – Adapter for two-sided contacting
VC 30 IFR 80R DUO

Vacuum – cartridge exchange system
VAM 30 with exchange cartridge VAN and VAV

Pneumatic cartridge exchange system
Redline with exchange cartridge TC 30 – and exchange plate TP 30 -410





Vacuum - Adapter for IFR Test system 80R

Vacuum adapter VC 30 IFR 1880

Swivel-type vacuum cartridge with gas-assisted shock absorber, mounted on a sloped case.
The interface consists of max. 5 ea. 156-pole 0-force plugs by Cannon.
Braided wiring with exchangeable crimp contacts; ww-wiring by means of ww stud technology.

Outer dimensions       375 x 555
Usable area               320 x 450

Adapter variants:

Double-lift - adapters for FKT and ICT - Testing
VC 30  IFR 80R DH

DUO – adapters for two-sided contacting
VC 30 IFR 80R DUO

Vacuum – cartridge exchange system
VAM 30 with exchange cartridge VAN and VAV

Pneumatic – cartridge exchange system
Redline with exchange cartridge TC 30 – and exchange plate TP 30 -410

Exchange – Adapters for IFR Test Systems

The variable adapter module “VAM 30” consists of a base unit and vacuum drive.
Equipped with an internal spring-pin interface, it allows system expansions up to 960 measuring points. The exchange cartridges are easily changed in just a few seconds and a flick of wrist – without any adjustment or setup times.
The exchange cartridges form a fully enclosed contacting unit and can be used as vacuum cartridges or retainer (hold-down) systems, depending on the type of PCB. The system remains vacuum-driven in all cases.

Base unit “redline“
Suitable for use with exchange cartridges “TC 30“ or exchange plate “TS 30 - 410“, connected to the test system via an internal interface. The interface can be equipped with 6 ea. 96-pole VG terminals. Interfaces for all common test systems are available. The system can be driven pneumatically or manually.

”redline“ base unit with exchange cartridge “TC 30“
Allowing easy exchange of the cartridges in just a few seconds. The PCB is pressed onto the spring pins during the contacting step, thus avoiding any movements of the wiring between the measuring points and internal interface.
